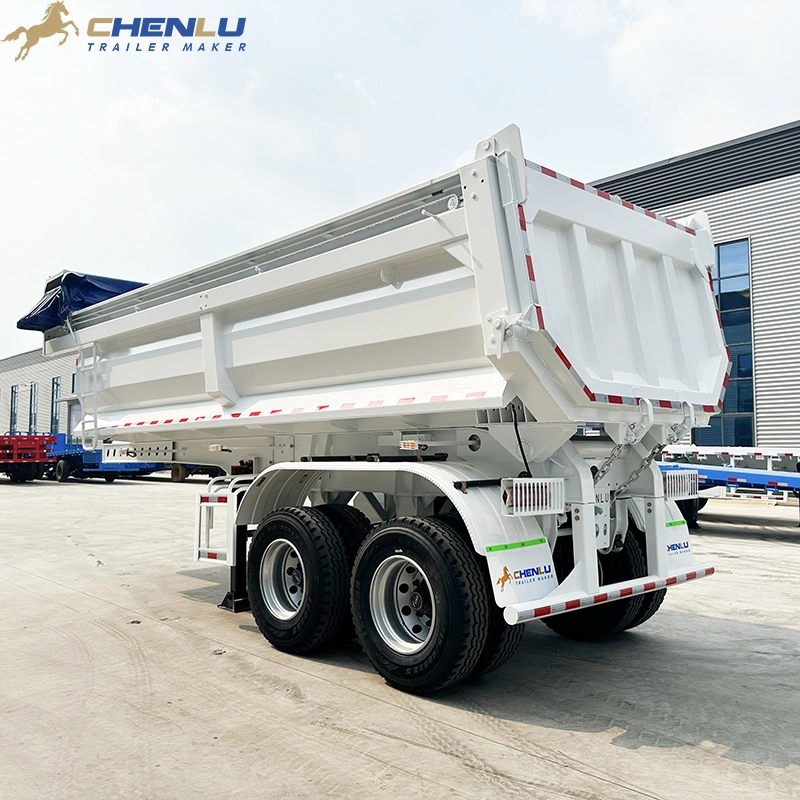

HYVA front cylinder
The cylinder at the front raises the body for rear tipping and lowers it after unloading.
Sand
Sand from supply yards to sites and concrete plants. Load from above, tip at the delivery point.
- Inicio
- Acerca de
- Catálogo
-
Productos
-
Transporte en contenedores y a granel
Semirremolque de plataforma Semirremolque con valla Semirremolque con cortinas laterales Tráiler de «Skeleton» Remolque para el transporte de automóviles -
Transporte de líquidos y polvos
Remolque cisterna de aluminio Cisterna para transporte de cemento a granel Remolque cisterna para combustible Remolque cisterna de acero inoxidable Remolques cisterna para asfalto en venta -
Transporte de maquinaria y equipos
Remolque plegable con cuello de cisne Semirremolque de plataforma baja Remolque de plataforma baja de varios ejes Remolque con cuello de cisne desmontable -
Transporte de arena y carbón
Semirremolque con paredes laterales Semirremolque volquete -
Camiones y remolques especiales
Camiones HOWO Camiones FAW Camiones Foton Camiones SHACMAN Camiones Foton Camiones Dongfeng Piezas para remolques
-
- Solución
- Caso
- Visita Chenlu
- Conocimiento
- Ayuda
- Contacto
Tandem-axle tipper
2 Axle Rear Dump Semi Trailer with Electric Tarpaulin Cover

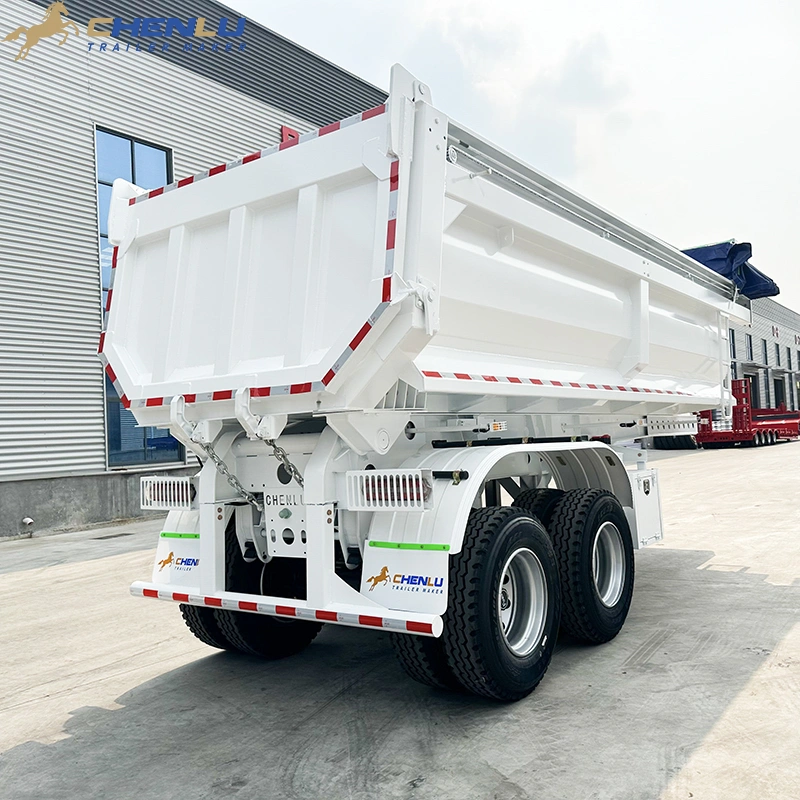

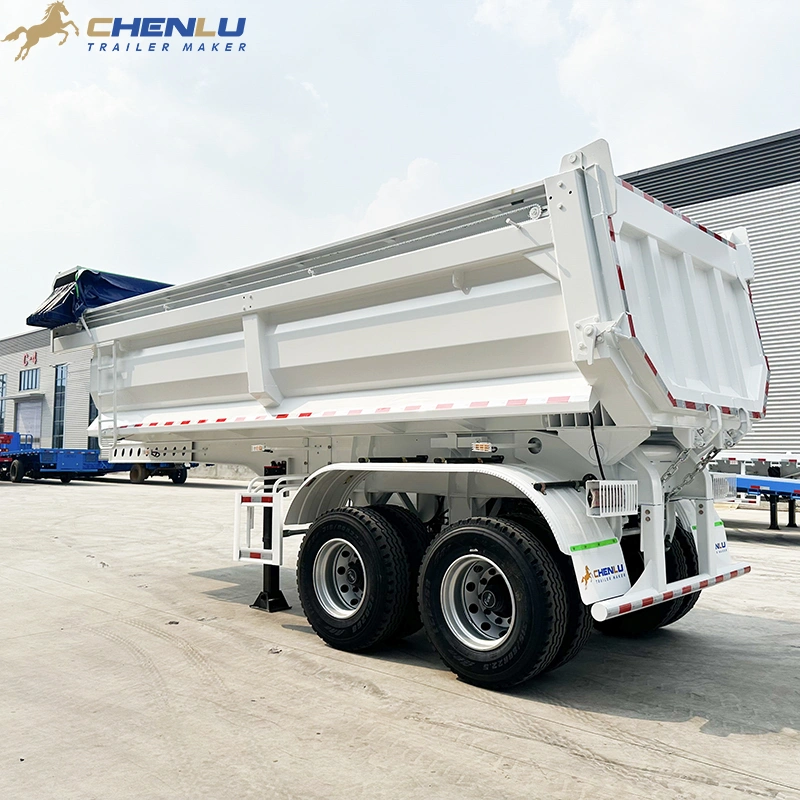

This tandem-axle rear dump semi trailer hauls sand, gravel, coal and other loose bulk. A front-mounted HYVA cylinder tips the high-sided body so the load runs out through the rear gate, and an electric tarpaulin covers it on the road.
- Ejes
- 2 x FUWA 13 t
- Body (inside)
- 6,600 x 2,300 x 1,400 mm
- Tested payload
- About 30-40 t
- Unloading
- Hydraulic rear tipping
Precio: directo de fábrica, solicite una cotización
Garantía: 2 años
Body volume matched to your cargo
Descripción del producto
High-Sided Body, HYVA Front Cylinder and Electric Cover
The rectangular body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep inside, with lower sides that slope toward the floor. A HYVA 191 x 5600 cylinder at the front lifts the body and the load flows out through the rear gate. An electrically operated tarpaulin closes over the top for transport. In load tests at our factory the trailer carried about 30-40 tonnes; the payload you can run depends on cargo density and the weight limits on your route. The two 13 t axle ratings are component ratings, not the trailer payload.
-
Volcado hacia atrás
-
Electric tarp cover
-
Matched to your cargo
| Tipo | 2 axle rear dump (end dump) semi trailer |
| Overall size (L x W x H) | 7,800 x 2,500 x 3,750 mm |
| Internal body (L x W x H) | 6,600 x 2,300 x 1,400 mm |
| Ejes | 2 x FUWA, 13 t each |
| Distancia entre ejes | 1,310 mm |
| Tyres | 315/80R22.5 |
| Unloading | Hydraulic rear tipping |
| Hydraulic cylinder | HYVA 191 x 5600, front-mounted |
| Cargo cover | Electrically operated tarpaulin |
| Caja de herramientas | One 600 x 600 mm, right side |
| Side guard | Left side |
| Tested payload | About 30-40 t in factory load tests |
| Garantía | 2 años |

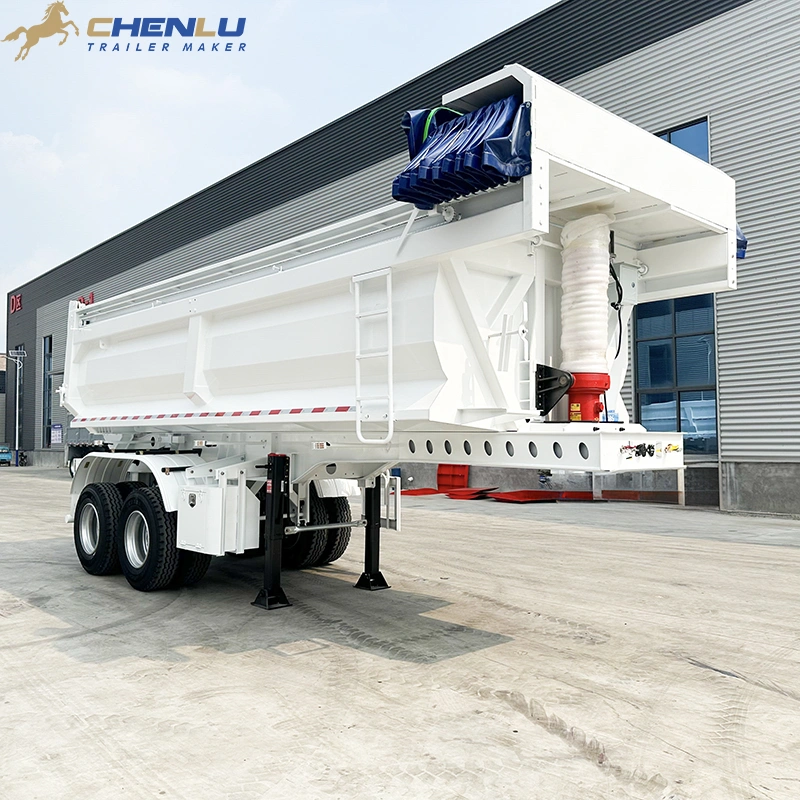

Tipping system
Front Cylinder, Rear Gate and Electric Cover
Three parts handle loading, transport and unloading.

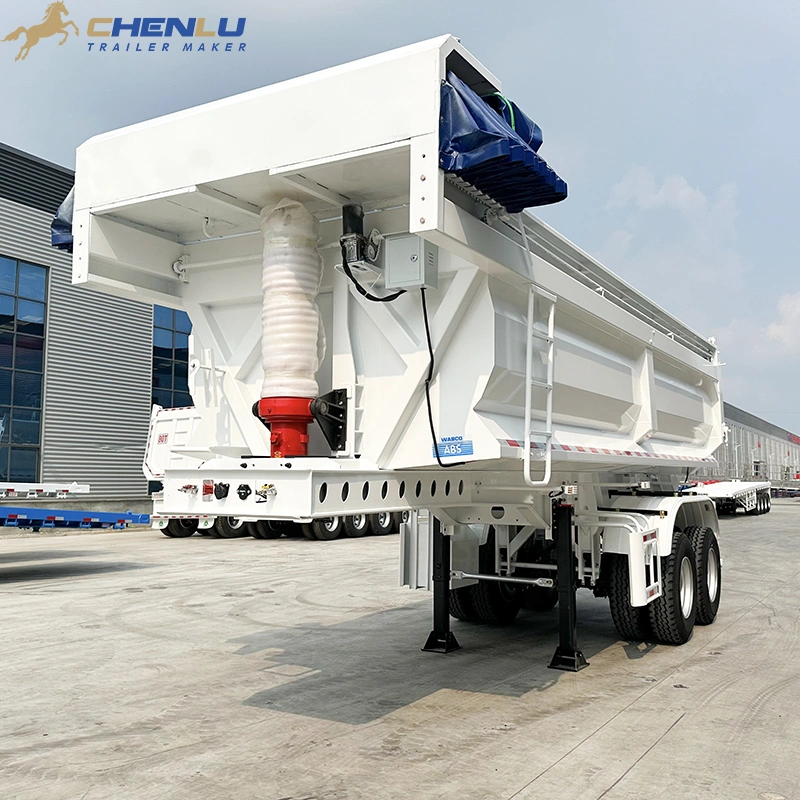

Portón trasero
The gate holds the load on the road and opens for discharge. Wet or sticky material flows out more slowly.
Electric tarpaulin
The tarp extends and retracts electrically, limiting wind loss on the road and opening for loading from above.
Chasis
Tandem Axles and Underbody Equipment
Two axles 1,310 mm apart sit under the rear of the body.

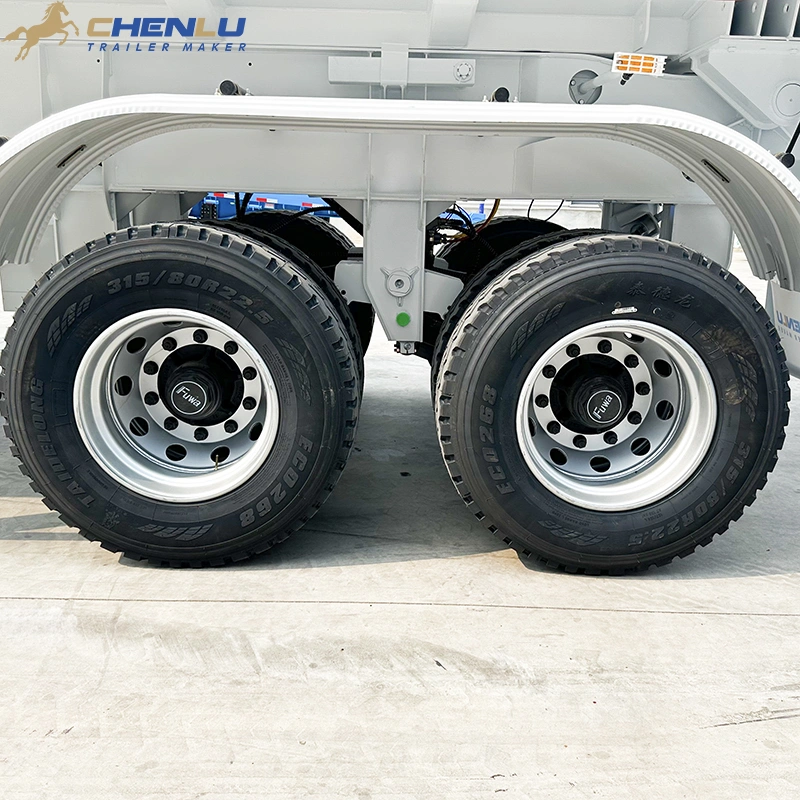

FUWA axles, 315/80R22.5 tyres
Two FUWA axles rated 13 t each, on 315/80R22.5 tyres.

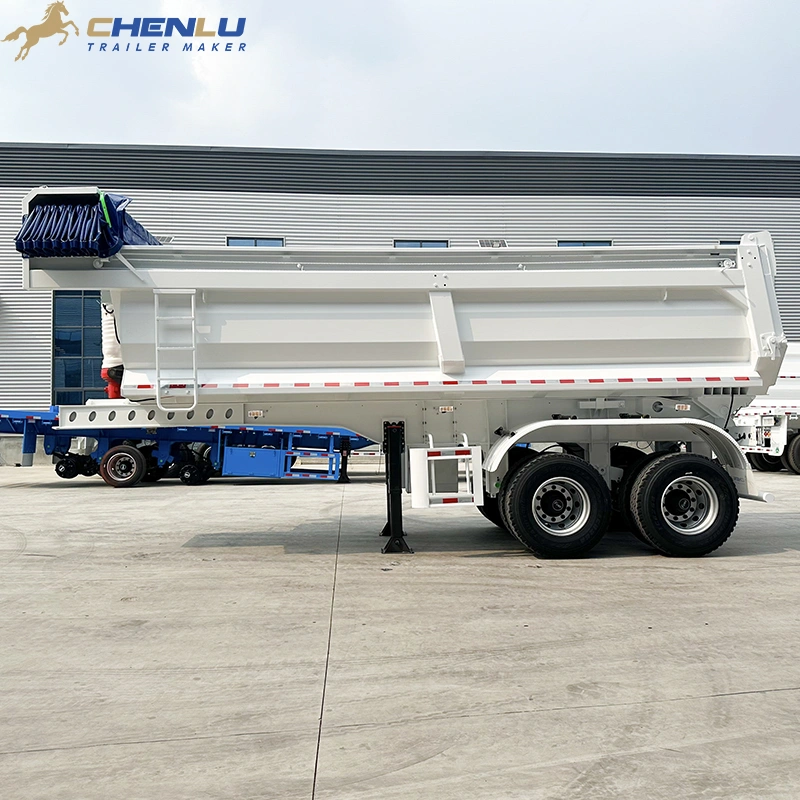

Landing gear and toolbox
Landing gear and a 600 x 600 mm toolbox sit ahead of the axle group; the side guard is on the left.

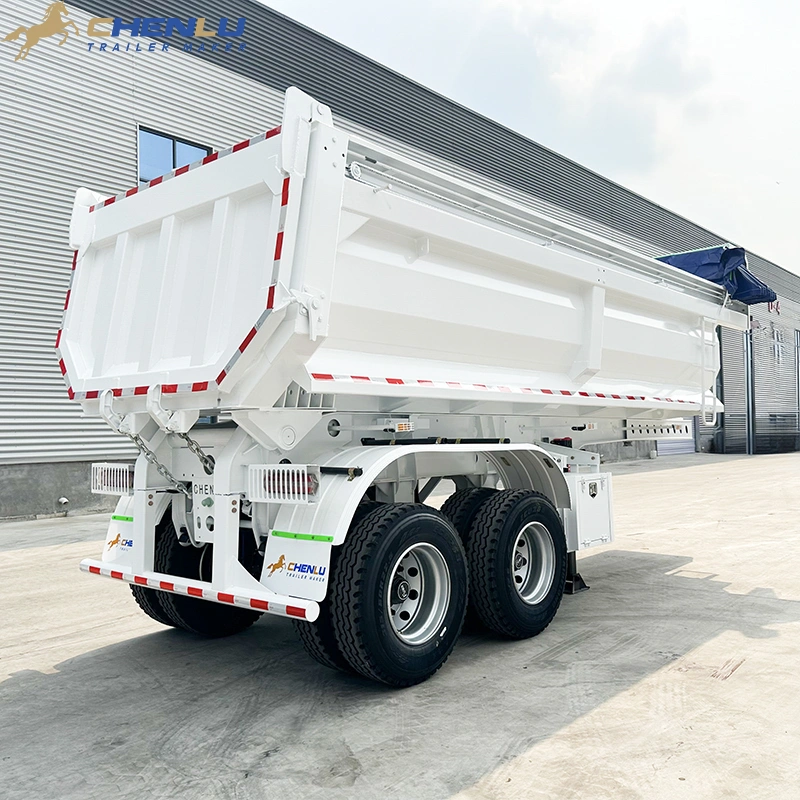

High-sided cargo body
Straight upper sidewalls with lower sides sloping toward the floor help the load slide out.
Dimensiones
2 Axle Rear Dump Trailer Dimensions
Outside dimensions decide route and yard clearance; inside dimensions decide how much material fits.
- Longitud total
- 7,800 mm (25 ft 7 in)
- Ancho total
- 2,500 mm (8 ft 2 in)
- Altura total
- 3,750 mm (12 ft 4 in)
- Inside length
- 6,600 mm
- Inside width
- 2,300 mm
- Inside height
- 1,400 mm
- Distancia entre ejes
- 1,310 mm

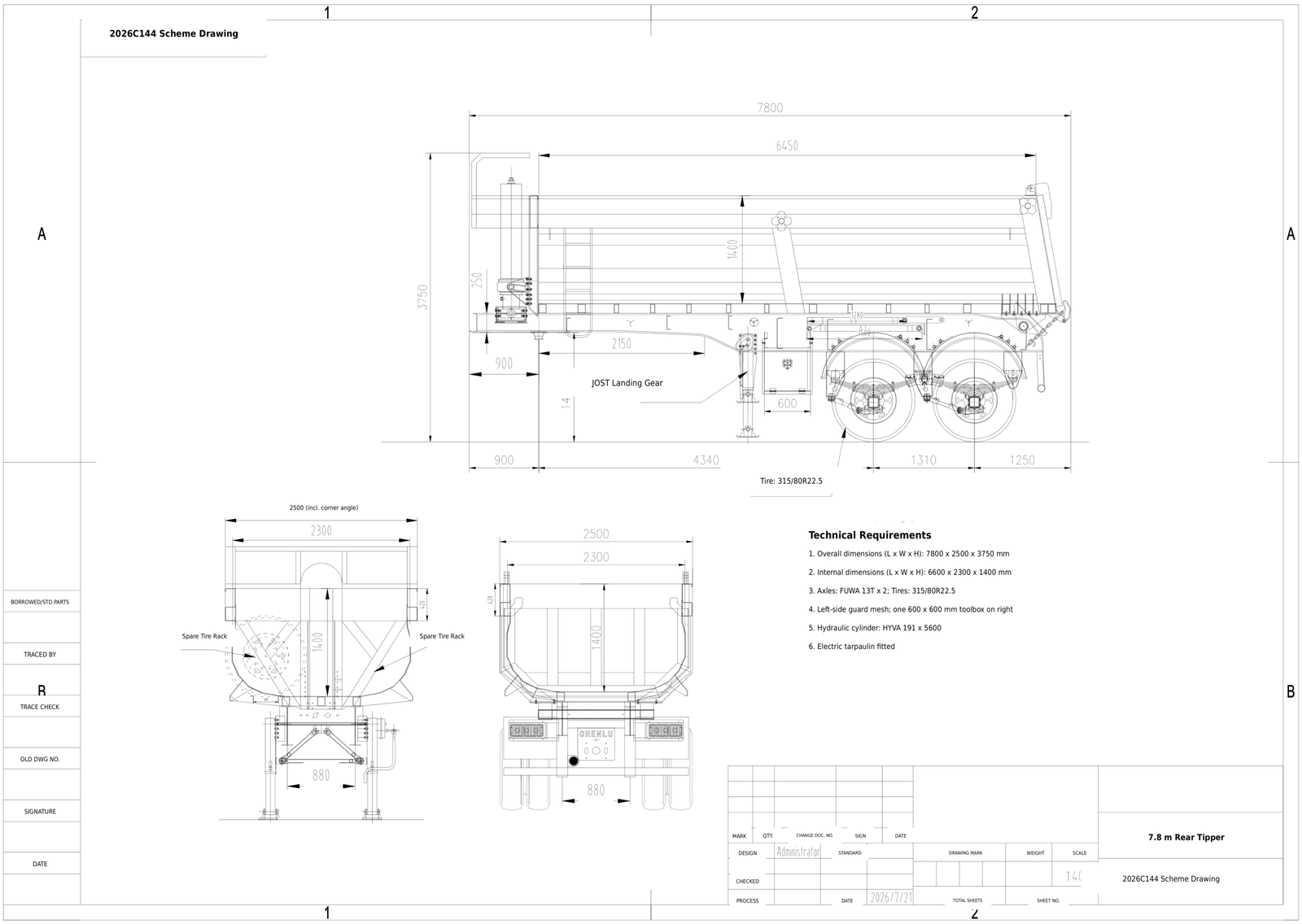

Specifications from the general arrangement drawing. Payload and tare weight are not stated on the drawing; the 30-40 t figure comes from factory load tests.
Vídeo
Watch on YouTube ↗2 Axle Rear Dump Trailer: Tipping and Cover
Product video of the finished trailer: hydraulic body lift, rear-gate discharge and the electric tarpaulin cover.
What Can a 2 Axle Dump Trailer Haul?
Match the body to your material
The same body volume holds very different weights of sand, gravel and coal. Tell us your material and we size the body.
Why can't you work out payload from body volume?
Cubic Metres Are Not Tonnes
The 6,600 x 2,300 x 1,400 mm body holds about 21 cubic metres level-full, but that volume weighs very differently by material: dry sand is far heavier per cubic metre than coal. A bigger box does not raise the permitted load, which is set by axle and tyre ratings, the tractor and your road limits. Send the material and its bulk density, and we size the body so a full load stays within your legal weight.
Opciones de configuración
Axle, Suspension and Brake Options for the 2 Axle Dump Trailer
FUWA 13 t axles are fitted as shown. If your fleet services other brands, choose them here.
01Eje de semirremolque FUWA
Fitted as shown: two FUWA axles rated 13 t each.
02Eje de remolque BPW
German axle brand for fleets that keep BPW spares.
03Eje tipo americano
Para mercados que utilizan ejes y ruedas de estilo estadounidense.
04Suspensión mecánica de estilo alemán
Leaf-spring suspension that copes with quarry and site roads and is easy to repair.
05Repuestos de suspensión
Springs, hangers and wear parts can ship with the trailer as a spare-parts kit.
06Válvula de freno WABCO
Brake valve option for fleets that standardise on WABCO air-brake parts.
¿Por qué confiar en CHENLU?
Fabricado en nuestra propia fábrica, respaldado por datos verificables
Your dump trailer is cut, welded, painted and load-tested in our own factory.
Desde 2008
Fabricación directa de fábrica
Nuestra propia planta de fabricación en Heze, Shandong: 60 000 m² de talleres y más de 300 operarios e ingenieros.
ISO 9001 + CCC
Sistema de calidad certificado
Gestión de calidad ISO 9001:2015 y certificación obligatoria de China (CCC), con 32 patentes nacionales (21 concedidas).
10–30 días
Fabricado según sus planos
Las fabricaciones a medida suelen tardar entre 10 y 30 días tras el anticipo, con actualizaciones mediante fotos y vídeos. Las inspecciones previas al envío son bienvenidas.
Garantía de 2 años
Servicio posventa
Repuestos, guías de uso y consejos de mantenimiento para los remolques que fabricamos.
Visitas de clientes
Dump Trailer Buyers Who Visited Our Factory
Buyers from Togo, Burkina Faso, Pakistan, Australia and other markets have inspected their dump trailers at CHENLU. Click any photo to see more visits or plan your own.
Clientes costarricenses visitan la fábrica para conocer los semirremolques de plataforma baja y volquetes de alto rendimiento
Un cliente de los Emiratos Árabes Unidos visita nuestra fábrica
Clientes africanos quedan impresionados con las soluciones de semirremolques volquetes para trabajo pesado de CHENLU
Cliente de Togo visitando la fábrica de semirremolques de CHENLU
Cliente de Burkina Faso en la fábrica de CHENLU
Socio comercial brasileño de visita en la fábrica de CHENLU
Cliente de Pakistán revisando remolques en CHENLU
Cliente australiano visitando la fábrica de semirremolques de CHENLUVisite CHENLUPlanifique su visita a la fábrica de CHENLUPreguntas frecuentes
2 Axle Rear Dump Trailer FAQ
01How much can a 2 axle dump trailer carry?
In factory load tests this trailer carried about 30-40 tonnes. The payload you can legally run depends on cargo density, tyre and axle ratings, the tractor and the weight limits in your country.
02What is the body size?
Inside, the body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep. Overall the trailer is 7,800 x 2,500 x 3,750 mm.
03What materials can it haul?
Sand, gravel, crushed aggregate, coal and other loose bulk materials. Material density decides how full the body can be.
04How does it unload?
A front-mounted HYVA hydraulic cylinder lifts the body and the load discharges through the rear gate. Tip only on firm, level ground with enough overhead clearance.
05Does it come with a cover?
Yes. An electrically operated tarpaulin covers the load in transport and retracts for loading from above.
06What do you need for a quote?
Cargo type and bulk density, required payload, tractor model, destination country, unloading conditions and order quantity.
